Raytheon RIM-162 ESSM
The RIM-162 ESSM (Evolved Sea Sparrow Missile) is the successor of the RIM-7 Sea Sparrow ship-borne short-range air-defense missile. The concept phase was begun in 1988 by Hughes and Raytheon, and called for a new missile compatible with Sea Sparrow launchers. In 1995, Hughes was announced as winner of the ESSM competition, and subsequently teamed with Raytheon for further development. Following the acquisition of the Hughes missile division by Raytheon, the latter is now the sole prime contractor for ESSM.
The RIM-162 is based on the RIM-7P, but is a new missile in almost all respects. It is a tail-controlled missile with strakes instead of wings and fins, using thrust vectoring to achieve a 50G manoeuvering capability. ESSM also features a completely new (boost-only) solid rocket motor of larger (25.4 cm, 10 in) diameter, a new autopilot, and a new insensitive-munition blast-fragmentation warhead. Effective range is significantly bigger than that of the RIM-7P, making ESSM a short/medium-range surface-to-air missile. Tests of various ESSM flight test vehicles started in September 1998, and these tests included interceptions of target drones and simulated missile threats. The OpEval (Operation Evaluation) of the ESSM system was successfully completed in September 2003. Go-ahead for full-scale production was given in January 2004, and in February that year the U.S. Navy began to equip the first ships with tactical ESSM rounds.
![]() |
Photo: Raytheon |

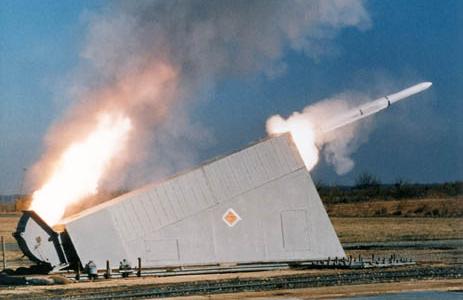

RIM-162A |
The original ESSM, Block 1, was initially produced in four versions, each tailored to a specific guided missile weapon system and launcher. The RIM-162A is designed for launch in the MK 41 VLS (Vertical Launch System) of AEGIS ships, with four RIM-162A missiles per MK 41 launch cell. The RIM-162B is a version for use with the MK 41 VLS on non-AEGIS ships, and therefore lacks the AEGIS S-band uplink. The RIM-162C and RIM-162D are derivatives of the RIM-162B, for use with the MK 48 VLS and MK 29 box-launcher, respectively.
![]() |
Photo: Raytheon |

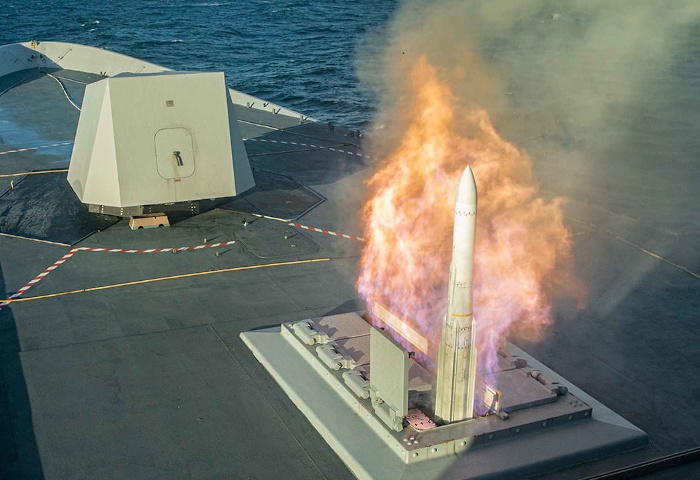

RIM-162B |
These variants were later amended by the RIM-162E for the MK 56 VLS, and the RIM-162F for the MK 57 PVLS (Peripheral VLS) of Zumwalt (DDG-1000) class destroyers. The RIM-162G is another version for MK 29 launchers, but no details about the differences to the RIM-162D are available.
![]() |
Photo: U.S. Navy |
RIM-162D/G (exact version unknown) |
In 2015, 13 ESSM user nations signed a contract with Raytheon to develop an advanced version of the missile, labeled ESSM Block 2. On the Block 2 missile, the guidance section has the same 25.4 cm (10 in) diameter of the propulsion section, and incorporates a new dual mode active/semi-active X-band radar seeker. The first successful intercept flight-test of the ESSM Block 2 using the new active radar seeker occurred in July 2018. The U.S. Navy announced IOC (Initial Operational Capability) for the ESSM Block 2 in 2021, and the missile is currently in production both for the USN and foreign customers.
![]() |
Photo: Raytheon |

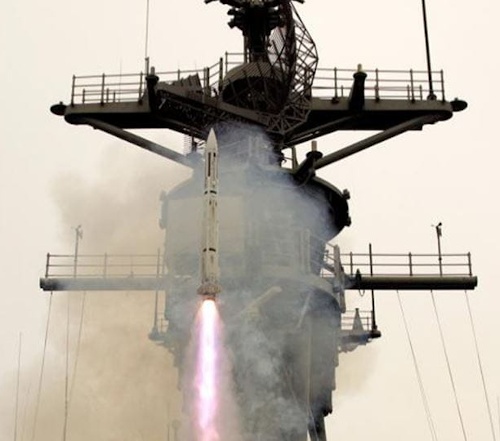

RIM-162 Block 2 (exact version unknown) |
The designations RIM-162H, RIM-162J and RIM-162K have been allocated to ESSM Block 2 variants, but the significance of the series letters is unclear. They may distinguish between missiles for different launchers (as for Block 1), but this is not confirmed.
Specifications
Note: Data given by several sources show slight variations. Figures given below may therefore be inaccurate!
Data for RIM-162A:
Length | 3.66 m (144 in) |
Diameter | 0.254 m (10 in) |
Weight | 280 kg (620 lb) |
Speed | Mach 4+ |
Range | 50+ km (27+ nm) |
Propulsion | MK 134 MOD 0 solid-fueled rocket |
Warhead | 39 kg (66 lb) MK 139 blast-fragmentation |
Main Sources
[1] Norman Friedman: "World Naval Weapons Systems, 1997/98", Naval Institute Press, 1997
[2] Hajime Ozu: "Missile 2000 - Reference Guide to World Missile Systems", Shinkigensha, 2000
[3]
"Vision... Presence... Power, A Program Guide to The U.S. Navy", 2000 Edition
[4] Raytheon Website
[5] U.S. Navy:
Evolved Seasparrow Missile Fact Sheet
[6] DOT&E: Evolved Sea Sparrow Missile (ESSM) Block 2,
FY2022 Report
Back to Current Designations Of U.S. Unmanned Military Aerospace Vehicles
Back to Directory of U.S. Military Rockets and Missiles
Last Updated: 23 December 2024
