Boeing ES-21 UFO
The UFO (UHF Follow-On) system is a series of geostationary communication satellites, commissioned in the 1990s by the U.S. Navy to supplant and eventually replace the older FLTSATCOM (Fleet Satellite Communications) and Leasat satellites. Prime contractor was Hughes Space, now Boeing Satellite Systems.
The first three UFO satellites were of Block 1 configuration, and were equipped with a UHF (Ultra-High Frequency) and an SHF (Super-High Frequency) payload. Block 2, satellites UFO-4 to -6, added an EHF (Extremely High Frequency) payload, whose capacity was doubled in the final Block 2 satellite, UFO-7. In Block 3, satellites UFO-8 to -10, the SHF system was replaced by a new Ka-band Global Broadcast Service (GBS) payload. The final satellite UFO-11 was of Block 4 configuration, with enhanced UHF and EHF payloads.
 |
| Image: Boeing |

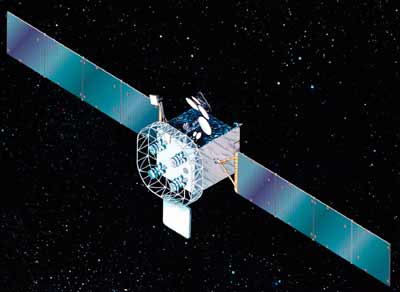

| ES-21A (UFO Block 3) |
The successor to UFO is MUOS (Mobile User Objective System). In 2021, responsibility for the remaining UFO assets was transferred from the Navy to the newly-established U.S. Space Force, which allocated the MDS designation ES-21A to the satellites. As of early 2024, at least 4 UFO satellites are still operational.
| Name | Intl. Designation | Launch | Notes |
|---|---|---|---|
| UFO-1 | 1993-015A | 25-Mar-1993 | Partial launch failure; satellite stranded in unusable orbit |
| UFO-2 | 1993-056A | 03-Sep-1993 | Also known as USA 95 |
| UFO-3 | 1994-035A | 26-Apr-1994 | Also known as USA 104 |
| UFO-4 | 1995-003A | 29-Jan-1995 | Also known as USA 108 |
| UFO-5 | 1995-027A | 31-May-1995 | Also known as USA 111 |
| UFO-6 | 1995-057A | 22-Oct-1995 | Also known as USA 114 |
| UFO-7 | 1996-042A | 25-Jul-1996 | Also known as USA 127 |
| UFO-8 | 1998-016A | 16-Mar-1998 | Also known as USA 138 |
| UFO-9 | 1998-058A | 20-Oct-1998 | Also known as USA 141 |
| UFO-10 | 1999-063A | 23-Nov-1999 | Also known as USA 146 |
| UFO-11 | 2003-057A | 18-Dec-2003 | Also known as USA 174 |
Launch dates of the UFO series
Main Sources
[1] Wikipedia: UHF Follow-On Satellite
[2] Gunter Krebs: UFO 1, 2, 3,
UFO 4, 5, 6, 7,
UFO 8, 9, 10,
UFO 11
[3] USSF:
Army, Navy SATCOM Mission Areas Shifting to U.S. Space Force
