GAMBIT

GAMBIT-1

Already in 1960, Eastman Kodak had approached the Air Force with several proposals for a design of a camera system for a very high-resolution photo-reconnaissance satellite. One of these proposals, named "Sunset Strip" by Eastman Kodak, was selected in September that year for a covert development program named GAMBIT. At around the same time, development of the SAMOS E-6 camera system got underway, and it was decided to use that program as a "cover" for early GAMBIT component development. Early procurement for GAMBIT ran under Program 307, but eventually the designation Program 206 was assigned to GAMBIT. The camera system was designated KH-7 in the "Keyhole" series established by the CORONA program. The KH-7 system was significantly larger than the optics in CORONA, and was essentially a medium-sized telescope looking down on earth. GAMBIT/KH-7 was to provide very detailed images of specific preselected targets, while CORONA would continue to provide slightly less detailed, but wider area, coverage. GAMBIT was primarily managed by the National Reconnaissance Office, with the Air Force executing the program.

Like SAMOS E-6, GAMBIT was launched with an Atlas-Agena stack. The GAMBIT satellite consisted of the Optics Module (OM), the Orbital Control Vehicle (OCV) and a single Recovery Vehicle (RV) for film return. Both OCV and RV were built by General Electric, with the RV being essentially the same design as used for CORONA. Original plans called for an RV recovery on land, but in the end the air-recovery method of CORONA was adopted, after the latter had been shown to work well. In orbit, the GAMBIT satellite itself separated from the Agena upper stage, because the OCV should be able to provide the necessary attitude control. However, the Agena was kept attached during the first flights, to have a mature control backup for the unproven OCV. In that configuration, the Agena was connected to the GAMBIT itself by a roll-joint, meaning that the camera could rotate while Agena stayed in a constant attitude.

Drawings: Guiseppe di Chiara, CC BY-SA 3.0

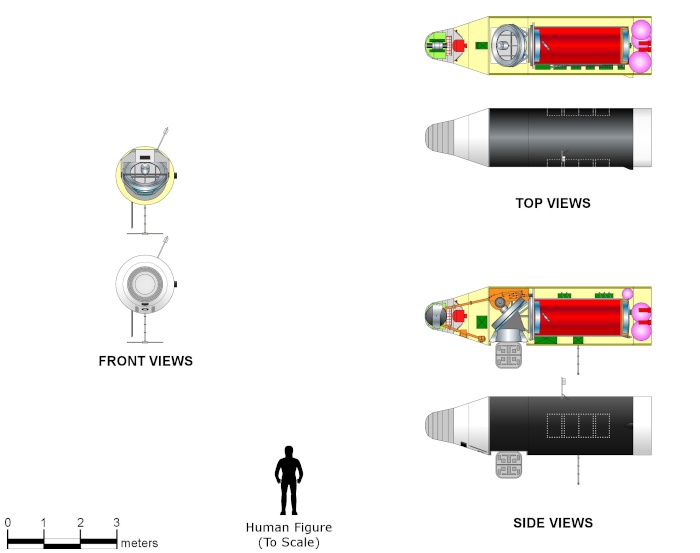

GAMBIT (KH-7), without Agena

The first GAMBIT flight was to take place in May 1963, but the Atlas first stage was destroyed on the pad due to a failure during preparation. The first actual launch of a GAMBIT satellite occurred on 12 July 1963, and the flight was basically successful. The first flights were basically test flights, with relatively short mission times of only 1-3 days, and only few (if any) actual targets of interest photographed. At that time, GAMBIT was renamed GAMBIT-1, after development of GAMBIT-3 had begun. During 1964, it became apparent that the OCV had severe reliability problems, especially regarding unplanned loss of control gas, which rendered the satellite uncontrollable and therefore useless. The problems were only fixed for good after management and procedural changes at GE in mid-1965.

GAMBIT-1 finally lived up to expectations between September 1965 and the last flight in June 1967, with 15 out of 17 missions being fully successful. In-orbit time was between 5 and 8 days, and photographic resolution was consistently between 0.6 m (2 ft) and 0.9 m (3 ft).

GAMBIT-1 (KH-7) Launch List

• No.: Sequential flight number for the GAMBIT-1 program
• Name: Unclassified name of the satellite. The OPS number ("OPS" standing for "Operations") is a random number given to all military-related satellite launches between 1963 and May 1984 (when "OPS" was replaced by a sequential "USA" number).
• Mission: Each KH-7 mission had a unique serial number in the 40xx range.
• COSPAR ID: International designation of the satellite; not applicable, if orbit was not reached
• Launch Vehicle: Variant of Atlas first stage and Agena upper stage
• Result:
  - Launch failure: Failed to reach orbit; includes both first stage and second stage failures
  - Camera failure: GAMBIT reached orbit, but the camera system failed in some way
  - In-orbit failure: A problem in orbit (e.g. satellite instability) prevented taking usable photographs
  - Recovery failure: RV couldn't be recovered
  - Partial success: Some usable film retrieved, but problems prevented better results, in quality and/or quantity
  - Success: RV successfully recovered and film retrieved

GAMBIT (KH-7) launches

GAMBIT-3

In 1963, Eastman Kodak proposed several possible enhancements to the KH-7/GAMBIT optical system, which they labeled GAMBIT-2, GAMBIT-3 and GAMBIT-4, increasing in size and sophistication. At the end of that year, the NRO decided to go forward with the development of GAMBIT-3, because -2 offered only limited improvements over the basic GAMBIT, and -4 was so large that problems in manufacturing were anticipated. GAMBIT-3 (sometimes written as G³ at that time) received the numerical designation Program 110, and its new telescope and camera system was designated KH-8. Because of the problems with the OCV of GAMBIT-1, it was also decided to fall back to using the Agena stage as control module in orbit. As in the early GAMBIT-1 test flights, the Agena was connected by a roll-joint to the reconnaissance module, which was significantly longer than that of GAMBIT-1.

In 1964, it was decided to switch from the Atlas first stage to the significantly more powerful Titan IIIB, which was a Titan III variant adapted to use an Agena D upper stage. Atlas-Agena might have been sufficient to launch the initial GAMBIT-3 vehicle, but Titan III offered more performance margin and growth potential. Also, the Air Force expected that the larger rocket would be needed anyway for an upcoming successor to CORONA.

Drawings: Guiseppe di Chiara, CC BY-SA 3.0

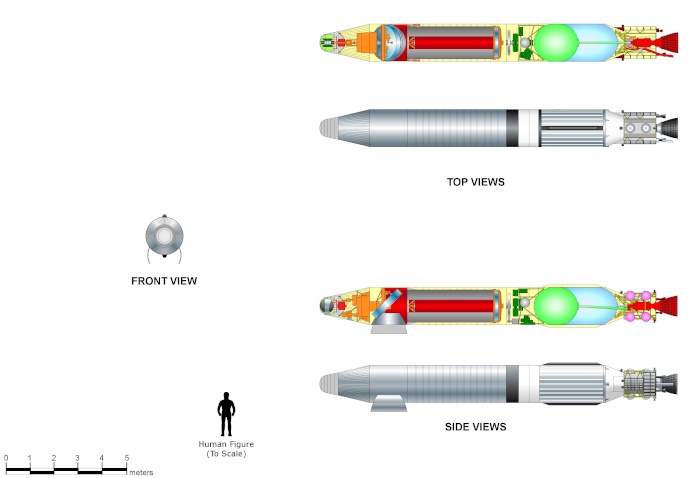

GAMBIT-3 (KH-8 Block I)

The first GAMBIT-3 flight was launched on 29 July 1966, and was fully successful. Until June 1969, 22 missions were flown, with a typical duration of in-orbit photo-reconnaissance of 10 days. Of these, only two failed to return any film. The photographic system worked as expected, the main camera yielding a resolution significantly better than GAMBIT-1's 60 cm (2 ft).

In 1966, it was also decided to upgrade GAMBIT to use two RVs, just as it had been done for CORONA/KH-4A. The upgraded satellite was named Block II (with the original design labeled Block I), and also featured an improved roll-joint, a fully redundant on-orbit attitude-control system and an Air Force standard space-to-ground link subsystem. To accommodate the higher launch weight, Titan 3(23)B boosters with uprated engines were used. The first GAMBIT-3 Block II mission was flight 23 on 23 August 1969. The second RV increased the number of photography days in orbit, from 14-15 days for the first Block II flights up to 27 days for the last one in September 1972. During the Block II flight program, the launch vehicle was updated to the Titan 3(24)B with a stretched first stage.

The main upgrade in the Block III version of the system, introduced on the 37th flight in December 1972, was a further improved roll-joint, for up to 18000 position changes per mission (the Block II roll-joint was certified for only 7000). This again increased the number of days for photo-reconnaissance to more than 50 in the last three Block III missions.

Drawings: Guiseppe di Chiara, CC BY-SA 3.0

GAMBIT-3 (KH-8 Block IV)

The final development of GAMBIT-3 was the Block IV, introduced with the 48th flight in May 1977. It featured improvements to the camera and film handling systems, and many improvements in the control section, the most prominent of which was the addition of a pair of solar array panels for sustained electrical power. Block IV satellites remained in orbit still longer than Block III, with a record mission duration of 129 days set on the next to last flight.

GAMBIT-3 flight number 52 was a special "Dual-Mode" mission. The satellite first orbited at a higher altitude (ca. 480-560 km) to perform wide-area "search" reconnaissance for about 90 days, and only then descended to a typical 125 km (78 miles) orbit for its usual task of very high-resolution target-specific photography. The Dual-Mode flight profile required some major changes to both the photographic payload and the satellite control section. It had originally been devised as a backup in case of severe problems with the HEXAGON/KH-9 wide-area search system, which was to replace CORONA in the 1970s. But HEXAGON turned out to work just fine, so that the backup option was never actually needed. Also, GAMBIT's Dual-Mode mission was only marginally successful, because the recovery of RV #1 failed, and the film returned by RV #2 had quality issues.

The last GAMBIT-3 mission was flown in April 1984. By that time, it had been succeeded in its role of high-resolution reconnaissance satellite by the KENNEN/KH-11 electro-optical photo-reconnaissance system. Even though GAMBIT's history is no longer secret, many of its technical details and performance specifications, especially for the KH-8 GAMBIT-3 system, still remain classified. This specifically includes the optical system's best-case ground resolution. Based on the known properties of the camera optics and the type of film used, some sources estimate, that it might have been as good as 10 cm (4 in).

GAMBIT-3 (KH-8) Launch List

• No.: Sequential flight number for the GAMBIT-3 program
• Blk.: GAMBIT-3 Block number
• Name: Unclassified name of the satellite. The OPS number ("OPS" standing for "Operations") is a random number given to all military-related satellite launches between 1963 and May 1984 (when "OPS" was replaced by a sequential "USA" number).
• Mission: Each KH-8 mission had a unique serial number in the 43xx range.
• COSPAR ID: International designation of the satellite; not applicable, if orbit was not reached
• Launch Vehicle: Variant of Titan booster and Agena upper stage
• Result:
  - Launch failure: Failed to reach orbit; includes both Titan and Agena failures
  - Recovery failure: RV couldn't be recovered
  - Partial success: Some usable film retrieved, but problems prevented better results, in quality and/or quantity; or only one out of two RVs of a KH-8 Block II+ was successfully recovered
  - Success: RV(s) successfully recovered and film retrieved

GAMBIT-3 (KH-8) launches

Main Sources

[1] David Baker: "US Spy Satellites", Haynes Publishing, 2016
[2] The GAMBIT Story, Center for the Study of National Reconnaissance Classics, NRO, 2012
